LINUX教程：Cobbler無人值守批量安裝Linux系統

作者：VEPHP   時間 2017-10-04

《LINUX教程：Cobbler無人值守批量安裝Linux系統》要點：
本文介紹了LINUX教程：Cobbler無人值守批量安裝Linux系統，希望對您有用。如果有疑問，可以聯系我們。

本文目次：

1.1 pxe安裝體系

1.2 cobbler根本介紹

1.3 安裝和設置裝備擺設cobbler

1.3.1 安裝cobbler

1.3.2 設置裝備擺設dhcp和tftp

1.4 cobbler從當?shù)毓獗P安裝系統

1.4.1 天生distro

1.4.2 提供kickstart文件

1.4.3 提供profile

1.4.4 開端安裝

1.5 比pxe+kickstart好的處所

1.6 讓新機械自動執行腳本

?

1.1 pxe安裝系統

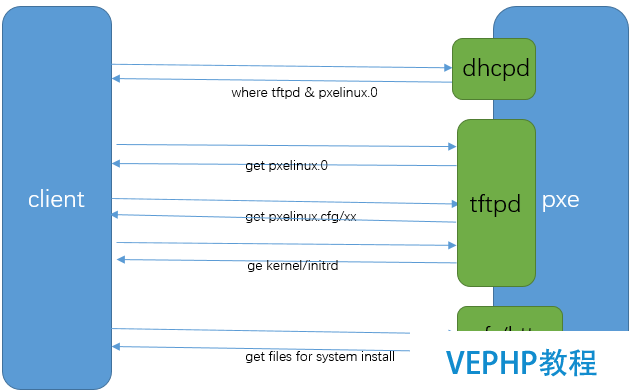

pxe的年夜致過程如下圖.

LINUX教程：Cobbler無人值守批量安裝Linux系統

此中pxelinux.0為bootloader.pxelinux.cfg目錄下的文件(一般使用默認的default文件)定義了安裝操作系統前的菜單項,如kernel和Initrd的路徑,kickstart的路徑等.

首先客戶端哀求pxe服務器上的dhcp,dhcp上指定了next-server和filename,它們分別是tftpd的地址和pxelinux.0的路徑；然后客戶端哀求tftpd獲取pxelinux.0,執行pxelinux.0后將引導進入安裝界面,隨后獲取pxelinux.cfg目錄下的文件并讀取其中的配置,從中獲取kernel和initrd的路徑所在,如果有定義kickstart項則還會去獲取kickstart文件并讀取配置；再然后客戶端哀求獲取kernel和initrd文件,以展開內核并進入到根文件系統；最后客戶端獲取完成系統安裝所需的其他文件,這些文件可以是在pxe的本地,也可以是互聯網上等能獲取到的地方.

在閱讀本文之前,如果不懂pxe+kickstart,建議先學習下,對學習cobbler很有贊助.

PXE+Kickstart實現無人值守批量安裝Linux?

RHEL7/CentOS7 PXE+Kickstart自動化體系安裝?

PXE+Kickstart安裝CentOS 7.3?

Linux運維自動化對象 Kickstart?

PXE+Kickstart無人值守安裝CentOS 7?

RHCE認證之無人值守安裝Linux體系(FTP+TFTP+DHCP+Kickstart+PXE)

CentOS Kickstart及領導鏡像文件制作?

Kickstart 全自動安裝部署RHEL 7.0?

PXE+Kickstart無人值守安裝CentOS 6?

1.2 cobbler基本介紹

cobbler可以看作是一個更多功能的pxe,它實現系統安裝和pxe也差不多,必要的文件和過程大致都一樣.

cobbler能自動管理dns/tftp/dhcp/rsync這四個服務(但似乎對tftp的管理有點bug,必要手動啟動tftp),且cobbler依賴于httpd(pxe支持http/nfs/ftp).

根本的系統安裝,cobbler只需生成一個distro和一個profile即可.

distro相當于一個鏡像,它提供安裝系統進程中所需的一切文件,如vmlinuz,initrd以及rpm包等.

profile的作用是為了自動修改pxelinux.cfg/default文件,每生成或修改一次profile,都邑在default文件中修改或追加對應的label.

除了distro/profile之外,cobbler還管理system/images/repositories等,然則用的很少.

1.3 安裝和設置裝備擺設cobbler

1.3.1 安裝cobbler

cobbler在epel源中提供.由于還依賴于httpd、dhcp,所以httpd和dhcp也應該裝上.

yum -y install cobbler cobbler-web pykickstart debmirror httpd dhcp

其中cobbler-web是提供web管理界面的,pykicstart是檢查kicstart文件語法差錯的,debmirror是維護debian源的工具,此處用不上但有依賴關系,所以裝上.

安裝后,在/etc/cobbler天生以下文件.

[root@linuxidc ~]# cd /etc/cobbler/
[root@linuxidc cobbler]# ls
auth.conf       distro_signatures.json  modules.conf    reporting           tftpd.template  zone_templates
cheetah_macros  dnsmasq.template        mongodb.conf    rsync.exclude       users.conf
cobbler_bash    import_rsync_whitelist  named.template  rsync.template      users.digest
completions     iso                     power           secondary.template  version
dhcp.template   ldap                    pxe             settings            zone.template

LINUX教程：Cobbler無人值守批量安裝Linux系統

先啟動httpd,再啟動cobblerd.

[root@linuxidc cobbler]# systemctl start httpd.service
[root@linuxidc cobbler]# systemctl start cobblerd.service
?
[root@linuxidc cobbler]# netstat -tnlp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address               Foreign Address             State       PID/Program name
tcp        0      0 0.0.0.0:22                  0.0.0.0:*                   LISTEN      1298/sshd
tcp        0      0 127.0.0.1:25                0.0.0.0:*                   LISTEN      1402/master
tcp        0      0 127.0.0.1:25151             0.0.0.0:*                   LISTEN      14091/python2
tcp        0      0 0.0.0.0:3306                0.0.0.0:*                   LISTEN      2261/mysqld
tcp        0      0 :::22                       :::*                        LISTEN      1298/sshd
tcp        0      0 ::1:25                      :::*                        LISTEN      1402/master
tcp        0      0 :::443                      :::*                        LISTEN      14037/httpd
tcp        0      0 :::80                       :::*                        LISTEN      14037/httpd

啟動之后,首先執行cobbler check反省配置是否正確.根據提示修改相關的配置項.

[root@linuxidc cobbler]# cobbler check
The following are potential configuration items that you may want to fix:
1 : The 'server' field in /etc/cobbler/settings must be set to something other than localhost, or kickstarting features will not work.  This should be a resolvable hostname or IP for the boot server as reachable by all machines that will use it.
2 : For PXE to be functional, the 'next_server' field in /etc/cobbler/settings must be set to something other than 127.0.0.1, and should match the IP of the boot server on the PXE network.
3 : some network boot-loaders are missing from /var/lib/cobbler/loaders, you may run 'cobbler get-loaders' to download them, or, if you only want to handle x86/x86_64 netbooting, you may ensure that you have installed a *recent* version of the syslinux package installed and can ignore this message entirely.  Files in this directory, should you want to support all architectures, should include pxelinux.0, menu.c32, elilo.efi, and yaboot. The 'cobbler get-loaders' command is the easiest way to resolve these requirements.
4 : change 'disable' to 'no' in /etc/xinetd.d/rsync
5 : comment out 'dists' on /etc/debmirror.conf for proper debian support
6 : comment out 'arches' on /etc/debmirror.conf for proper debian support
7 : ksvalidator was not found, install pykickstart
8 : The default password used by the sample templates for newly installed machines (default_password_crypted in /etc/cobbler/settings) is still set to 'cobbler' and should be changed, try: "openssl passwd -1 -salt 'random-phrase-here' 'your-password-here'" to generate new one
9 : fencing tools were not found, and are required to use the (optional) power management features. install cman or fence-agents to use them
Restart cobblerd and then run 'cobbler sync' to apply changes.

第一和第二個問題：

[root@linuxidc cobbler]# vim /etc/cobbler/settings
next_server: 172.16.10.10
server: 172.16.10.10

第三個問題：獲取pxelinux.0和menu.c32文件(對付centos來說只需這兩個文件),可以像pxe一樣從syslinux包中手動復制到/var/lib/cobbler/loaders目錄下,也可以執行cobbler get-loaders自動下載,但要求聯網.

[root@linuxidc cobbler]# cobbler get-loaders

第四個問題：有可能該問題不是如斯的,而是說要將rsyncd.service使用給start且enable,只需systemctl enable rsyncd,systemctl start rsyncd.

[root@linuxidc cobbler]# vim /etc/xinetd.d/rsync
disable=no
[root@linuxidc cobbler]# service xinetd start

第5、6個問題,注釋失落/etc/debmirror.conf中相關項即可.

第7個問題：因?yàn)橹鞍惭b的時候?qū)懗闪藀ykicstart,所以失足了這里.

[root@linuxidc cobbler]# yum -y install pykickstart

第8個問題：

[root@linuxidc cobbler]# openssl passwd -1 -salt `openssl rand -hex 8` '123456'
$1$77e1022c$D9rxuxUWdc0NN46gzj9XT.
[root@linuxidc cobbler]# vim /etc/cobbler/settings
default_password_crypted: "$1$77e1022c$D9rxuxUWdc0NN46gzj9XT."

第九個問題和電源管理有關,不消管了.直接重啟cobbler,然后cobbler sync.

[root@linuxidc cobbler]# service cobblerd restart
[root@linuxidc cobbler]# cobbler check
The following are potential configuration items that you may want to fix:
1 : fencing tools were not found, and are required to use the (optional) power management features. install cman or fence-agents to use them
[root@linuxidc cobbler]# cobbler sync

?cobbler sync命令用于將tftpboot目錄和/var/www/cobbler堅持最新,當/var/lib/cobbler或者kickstart文件發生了變化,應該執行一次cobbler sync或者直接重啟cobbler服務.

1.3.2 配置dhcp和tftp

如果在/etc/cobbler/setting中設置了manage_dhcp:1,表現由cobbler管理dhcp(默認為0即人為手動管理),則cobbler管理的dhcp的配置模板/etc/cobbler/dhcp.template會覆蓋/etc/dhcp/dhcpd.conf中配置,所以應該修改dhcp.template.

此處采納默認的不由cobbler管理dhcp.

[root@linuxidc cobbler]# yum-y install dhcp
[root@linuxidc cobbler]# vim /etc/dhcp/dhcpd.conf
ddns-update-style none;
default-lease-time 259200;
max-lease-time 518400;
subnet 172.16.10.0 netmask 255.255.255.0 {
        range 172.16.10.20 172.16.10.50;
        option subnet-mask 255.255.255.0;
        next-server 172.16.10.10;          # tftp的地址
        filename "pxelinux.0";             # pxelinux.0的路徑,此為tftp根目錄(/var/lib/tftpboot)的相對路徑
}
?
[root@linuxidc cobbler]# service dhcpd restart

關于tftp,在/etc/cobbler/settings中默認啟用了由cobbler管理tftp,所以此處無需配置它.只要知道它的根目錄為/var/lib/tftpboot即可.然則如果后面裝系統的時候如果找不到tftp(應該是cobbler管理tftp的bug),則手動啟動tftp即可.

1.4 cobbler從本地光盤安裝系統

1.4.1 生成distro

生成distro的辦法有多種,可以從本地鏡像導入生成,也可以根據網絡上的資源生成.顯然,從本地生成的效率是最好的.

從當?shù)貙?dǎo)入的過程實際上是將系統鏡像中的文件復制到/var/www/cobbler/目錄(默認)下.

mkdir /mnt
mount /dev/cdrom /mnt
cobbler import --name=CentOS7.2 --path=/mnt

等待導入完成,則表現distro生成完成.

[root@linuxidc cobbler]# ls -l /var/www/cobbler/images/CentOS7.2-x86_64/
total 38056
-r--r--r-- 3 root root 34815427 Oct 24  2014 initrd.img
-r-xr-xr-x 3 root root  4152336 Oct 24  2014 vmlinuz
?
[root@linuxidc cobbler]# ls -l /var/www/cobbler/ks_mirror/CentOS7.2/   # 此目錄完全起源于鏡像
total 340
-r--r--r-- 1 root root     14 Oct 24  2014 CentOS_BuildTag
dr-xr-xr-x 3 root root   4096 Oct 24  2014 EFI
-r--r--r-- 1 root root    212 Nov 28  2013 EULA
-r--r--r-- 1 root root  18009 Nov 28  2013 GPL
dr-xr-xr-x 3 root root   4096 Oct 24  2014 images
dr-xr-xr-x 2 root root   4096 Oct 24  2014 isolinux
dr-xr-xr-x 2 root root 278528 Oct 24  2014 Packages
-r--r--r-- 1 root root   1354 Oct 20  2014 RELEASE-NOTES-en-US.html
dr-xr-xr-x 2 root root   4096 Oct 24  2014 repodata
-r--r--r-- 1 root root   1706 Nov 28  2013 RPM-GPG-KEY-CentOS-6
-r--r--r-- 1 root root   1730 Nov 28  2013 RPM-GPG-KEY-CentOS-Debug-6
-r--r--r-- 1 root root   1730 Nov 28  2013 RPM-GPG-KEY-CentOS-Security-6
-r--r--r-- 1 root root   1734 Nov 28  2013 RPM-GPG-KEY-CentOS-Testing-6
-r--r--r-- 1 root root   3380 Oct 24  2014 TRANS.TBL

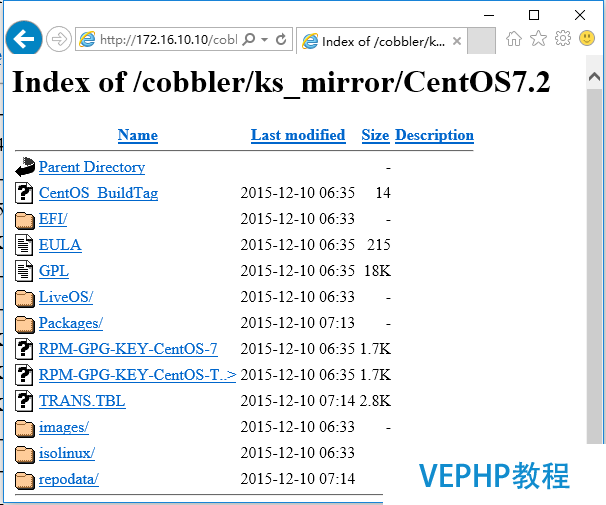

確保url路徑http://172.16.10.10/cobbler/ks_mirror/CentOS7.2/是有效的.

LINUX教程：Cobbler無人值守批量安裝Linux系統

?

1.4.2 提供kickstart文件

以下是CentOS7的Kickstart內容.如果要改為適合CentOS6的內容,只需將keyboard項設置為"keyboard us",并修改下分區方式(如有需要的話)以及%post腳本段的內容即可.

[root@linuxidc ~]# vim /var/lib/cobbler/kickstarts/CentOS7.2.ks
#version=DEVEL
# System authorization information
auth --enableshadow --passalgo=sha512
# Install OS instead of upgrade
install
# Use network installation
url --url=$tree
# Use text mode install
text
# Firewall configuration
firewall --disabled
firstboot --disable
# ignoredisk --only-use=sda   # 此項是CentOS7默認的項,但cobbler編譯ks文件時不支持此語法,所以必需將此項注釋掉
# Keyboard layouts
# old format: keyboard us
# new format:
keyboard --vckeymap=us --xlayouts='us'
# System language
lang en_US.UTF-8
# Network information
network  --onboot=yes --bootproto=dhcp --device=eth0 --noipv6
network  --hostname=node1.linuxidc.com
# Reboot after installation
reboot
# Root password
rootpw --iscrypted $6$KIPkwGVYqtjHln80$quxmkE5MKKA2LyzLOAc/s3FWH/jX76sObq6hqwOsEBoeMc/wIrzGG4xm72lkXwLeOfRLS/sl5vdajY9j34D4J.
# SELinux configuration
selinux --disabled
# Do not configure the X Window System
skipx
# System timezone
timezone Asia/Shanghai
# System bootloader configuration
bootloader --append="quiet crashkernel=auto" --location=mbr --boot-drive=sda
# Clear the Master Boot Record
zerombr
# Partition clearing information
clearpart --all --initlabel
# Disk partitioning information
part /boot --asprimary --fstype="xfs" --size=250
part swap --fstype="swap" --size=2000
part / --asprimary --fstype="xfs" --grow --size=5000
# 如果是要LVM分區,則考慮以下分區
# part /boot --fstype ext4 --size=100
# part swap --fstype=swap --size=2048
# part pv26 --size=100 --grow
# volgroup VG00 --pesize=32768 pv26
# logvol / --fstype ext4 --name=LVroot --vgname=VG00 --size=29984
# logvol /data --fstype ext4 --name=LVdata --vgname=VG00 --size=100 --grow
%post
rm -f /etc/yum.repos.d/*
cat >>/etc/yum.repos.d/my.repo<<eof
[base]
name=sohu
baseurl=http://mirrors.sohu.com/centos/7/os/x86_64/
gpgcheck=0
enable=1
[epel]
name=epel
baseurl=http://mirrors.aliyun.com/epel/7Server/x86_64/
enable=1
gpgcheck=0
eof
sed -i "s/rhgb //" /boot/grub2/grub.cfg
sed -i "/UUID/d" /etc/sysconfig/network-scripts/ifcfg-eth0
echo "DNS1=114.114.114.114" >> /etc/sysconfig/network-scripts/ifcfg-eth0
echo "UseDNS no" >> /etc/ssh/sshd_config
sed -i "s/GSSAPIAuthentication yes/GSSAPIAuthentication no/" /etc/ssh/ssh_config
sed -i "s/^SELINUX=.*$/SELINUX=disabled/" /etc/sysconfig/selinux
systemctl disable firewalld
%end
%packages
@base
@core
@development
@platform-devel
kexec-tools
lftp
tree
lrzsz
%end
%addon com_RedHat_kdump --enable --reserve-mb='auto'
%end

?上面的url也可以寫成url --url="http://172.16.10.10/cobbler/ks_mirror/CentOS7.2/".

?

1.4.3 提供profile

在導入鏡像生成distro的進程中,會自動生成一個profile.

[root@linuxidc cobbler]# cobbler profile list
   CentOS7.2-x86_64

該profile默認使用的kickstart是/var/lib/cobbler/kickstarts/sample_end.ks,所以必要修改此項.

[root@linuxidc cobbler]# cobbler profile report --name=CentOS7.2-x86_64
Name                           : CentOS7.2-x86_64
TFTP Boot Files                : {}
Comment                        :
DHCP Tag                       : default
Distribution                   : CentOS7.2-x86_64
Enable gPXE?                   : 0
Enable PXE Menu?               : 1
Fetchable Files                : {}
Kernel Options                 : {}
Kernel Options (Post Install)  : {}
Kickstart                      : /var/lib/cobbler/kickstarts/sample_end.ks
Kickstart Metadata             : {}
Management Classes             : []
Management Parameters          : <<inherit>>
Name Servers                   : []
Name Servers Search Path       : []
Owners                         : ['admin']
Parent Profile                 :
Internal proxy                 :
Red Hat Management Key         : <<inherit>>
Red Hat Management Server      : <<inherit>>
Repos                          : []
Server Override                : <<inherit>>
Template Files                 : {}
Virt Auto Boot                 : 1
Virt Bridge                    : xenbr0
Virt CPUs                      : 1
Virt Disk Driver Type          : raw
Virt File Size(GB)             : 5
Virt Path                      :
Virt RAM (MB)                  : 512
Virt Type                      : kvm
?
[root@linuxidc cobbler]# cobbler profile edit --name=CentOS7.2-x86_64 --kickstart=/var/lib/cobbler/kickstarts/CentOS7.2.ks

[root@linuxidc cobbler]# cobbler profile report --name=CentOS7.2-x86_64 | grep -i kickstart
Kickstart                      : /var/lib/cobbler/kickstarts/CentOS7.2.ks
Kickstart Metadata             : {}

對付centos7系列,則加上內核啟動參數net.ifnames和biosdevname使得網卡名使用ethN系列而不使用enoXXXXXXX這樣的隨機名稱.

[root@linuxidc cobbler]# cobbler profile edit --name=CentOS7.2-x86_64 --kickstart=/var/lib/cobbler/kickstarts/CentOS7.2.ks --kopts="net.ifnames=0 biosdevname=0"
[root@linuxidc cobbler]# cobbler profile report --name=CentOS7.2-x86_64 | grep -Ei 'kernel|kickstart'
Kernel Options                 : {'biosdevname': '0', 'net.ifnames': '0'}
Kernel Options (Post Install)  : {}
Kickstart                      : /var/lib/cobbler/kickstarts/CentOS7.2.ks
Kickstart Metadata             : {}

當然,不使用自生成的profile,本身添加一個profile也可以,同時還可以設置profile選項,如"--kickstart"項.如下：其中"--distro"指定該profile是添加到哪個distro下的.

[root@linuxidc cobbler]# cobbler profile add --name=CentOS7.2.1-x86_64 --distro=CentOS7.2-x86_64 --kickstart=/var/lib/cobbler/kickstarts/CentOS7.2.ks

現實上,每添加一個profile都是在向/var/lib/tftpboot/pxelinux.cfg/default中添加一個label.

[root@linuxidc cobbler]# cat /var/lib/tftpboot/pxelinux.cfg/default
DEFAULT menu
PROMPT 0
MENU TITLE Cobbler | http://cobbler.github.io/
TIMEOUT 200
TOTALTIMEOUT 6000
ONTIMEOUT local
LABEL local
        MENU LABEL (local)
        MENU DEFAULT
        LOCALBOOT -1
LABEL CentOS7.2-x86_64
        kernel /images/CentOS7.2-x86_64/vmlinuz
        MENU LABEL CentOS7.2-x86_64
        append initrd=/images/CentOS7.2-x86_64/initrd.img ksdevice=bootif lang=  text net.ifnames=0 biosdevname=0 kssendmac  ks=http://172.16.10.10/cblr/svc/op/ks/profile/CentOS7.2-x86_64
        ipappend 2
LABEL CentOS7.2.1-x86_64
        kernel /images/CentOS7.2-x86_64/vmlinuz
        MENU LABEL CentOS7.2.1-x86_64
        append initrd=/images/CentOS7.2-x86_64/initrd.img ksdevice=bootif lang=  kssendmac text  ks=http://172.16.10.10/cblr/svc/op/ks/profile/CentOS7.2.1-x86_64
        ipappend 2
MENU end

也就是說,其實可以不用生成profile,本身手動編輯label也可以.

默認使用的菜單背景圖片是menu.c32,此處我改為vesamenu.c32,該背景圖片是從syslinux包中提取的,背景圖片而已,看個人愛好了.另外默認菜單等待時間是2秒,在自動安裝的環境中,可以將其設置的短些.并且進入菜單默認停留在local,即從本地啟動系統,但是此時系統還沒裝,所以要實現自動化,建議修改此項.

以下是改動后的項.

DEFAULT vemamenu
DEFAULT menu
PROMPT 0
MENU TITLE Cobbler | http://cobbler.github.io/
TIMEOUT 20
TOTALTIMEOUT 6000
ONTIMEOUT CentOS7.2-x86_64
LABEL local
        MENU LABEL (local)
        LOCALBOOT -1
LABEL CentOS7.2-x86_64
        kernel /images/CentOS7.2-x86_64/vmlinuz
        MENU DEFAULT
        MENU LABEL CentOS7.2-x86_64
        append initrd=/images/CentOS7.2-x86_64/initrd.img ksdevice=bootif lang=  text net.ifnames=0 biosdevname=0 kssendmac  ks=http://172.16.10.10/cblr/svc/op/ks/profile/CentOS7.2-x86_64
        ipappend 2
LABEL CentOS7.2.1-x86_64
        kernel /images/CentOS7.2-x86_64/vmlinuz
        MENU LABEL CentOS7.2.1-x86_64
        append initrd=/images/CentOS7.2-x86_64/initrd.img ksdevice=bootif lang=  kssendmac text  ks=http://172.16.10.10/cblr/svc/op/ks/profile/CentOS7.2.1-x86_64
        ipappend 2
MENU end

在開始安裝之前,要確保該ks路徑是有效的且kickstart內容是正確的.有時候提供的Kickstart內容錯誤了,在制作成profile的時候不會報錯,但實際上瀏覽器拜訪該ks路徑的內容提示錯誤.例如,拜訪CentOS7.2.1-x86_64這個LABEL的kickstart文件,將其ks文件url地址http://172.16.10.10/cblr/svc/op/ks/profile/CentOS7.2.1-x86_64輸入瀏覽器中.如果得到如下結果,則表示出錯了,很大的可能是cobbler不支持kickstart中的某指令,這個需要慢慢檢查.

# This kickstart had errors that prevented it from being rendered correctly.
# The cobbler.log should have information relating to this failure.

修改kickstart文件后,必要重新編譯profile加載新的kickstart文件.只需使用cobbler profile edit --name=XXXXX --kickstart=YYYYY即可重新編譯XXXXX這個profile,或者執行cobbler sync命令.直到瀏覽器中能獲取到kickstart的內容時才算??功.

或者,使用cobbler profile getks --name=XXXXX敕令獲取名為XXXXX的profile的ks內容.

總之,必需要保證能正確獲取到ks內容.

1.4.4 開始安裝

準備一個新的機器開機就會自動進入菜單,2-3秒超時后自動進行安裝,安裝完成后自動重啟,重啟時自動從當?shù)貑?dòng).

所以,除了對新機械進行開機,其他的一切完完全全是全自動的.

建議在真正開始安裝前,將dhcpd/rsyncd/tftp/cobbler等給重啟一遍,防止中間改過哪些地方忘記重啟而導致裝機時失足.

1.5 比pxe+kickstart好的地方

僅就cobbler基本功能而言,它跟pxe的才能基本是一樣的,只是提供了更多花哨的功能.

但cobbler能夠使用變量,能夠通過幾個命令自動完成文件復制,改動等繁瑣的動作,另外它提供了api接口,常用的是它的圖形界面.在這一點上,它還是不錯的.

1.6 讓新機器自動執行腳本

有些時候新機器上要進行很多配置,在kickstart的%post段也可以配置,然則這里能進行的配置是有限的.

可以在cobbler服務端寫好要執行的腳本,然后在新機器上將腳本使用scp復制過去,但是scp復制需要確認和輸入暗碼,所以需要在kickstart的選包部分指定安裝expect包,然后使用expect進行非交互scp.

最后在%post段直接執行此劇本即可.

本文永遠更新鏈接地址：

更多LINUX教程，盡在維易PHP學院專欄。歡迎交流《LINUX教程：Cobbler無人值守批量安裝Linux系統》！

轉載請注明本頁網址：
http://www.fzlkiss.com/jiaocheng/9059.html


    標簽：
